Torque Converter Oil Flow - How it works. (Impeller, Turbine and Stator).

توضیحات:

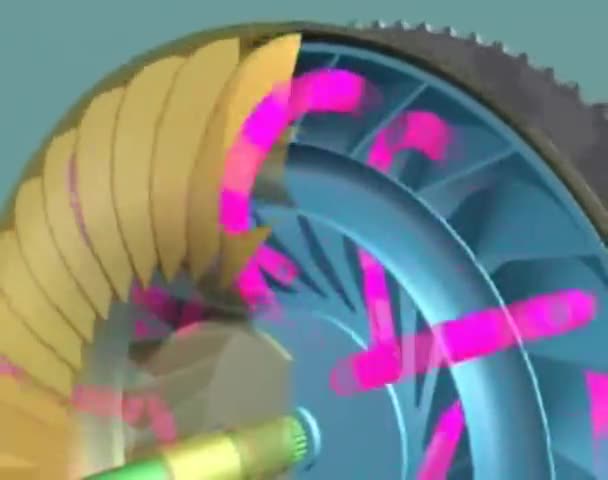

A simple explanation of the oil flow inside a torque converter and how it works.

In vehicles, the torque converter is a type of fluid coupling used to transmit power from the engine to the automatic gearbox. It takes the place of a clutch in a manual transmission set-up.

The torque converter has the ability to multiply torque when there is a substantial difference between input and output speed, thus providing the equivalent of a reduction gear.

Some torque converters are fitted with a "lock-up" which will lock the input to the output when the rotational speeds are almost identical.

A torque converter is generally made up of three parts.
The Impeller (also known as the pump), which is driven by the engine.
The Stator, held on a one-way clutch, used to re-direct the flow of oil when needed.
The Turbine, drives the automatic transmission (auto gearbox) input.

If you like what you see hit the like button, and if you would like to see more subscribe to Educational Mechanics here: https://www.youtube.com/user/Mattski6660?sub_confirmation=1

Visit our website for a larger collection at: http://edumech.co.uk
