The vehicle being tested is a 1999 Chevy Suburban with no fuel pressure. This truck had a new fuel pump installed and still did not have fuel pressure. In this video I will show you how to troubleshoot this entire fuel pump electrical system, including the fuel pump relay, wiring and computer.
Engine Performance Diagnostics chapter 3 page 26
- no start with good spark
- no fuel pressure
- no trouble codes
- repair wiring to the fuel (new pump was wired backwards
- how to test a fuel pump relay in a power distribution box.
- power side switched circuit design description and operation.
- Fuel pump power and ground testing.
- how to manually jump a fuel pump from the fuse box
- how to test a fuel pump relay
- relay pins (what each one does and how to test them)
- how to verify computer control of the fuel pump relay

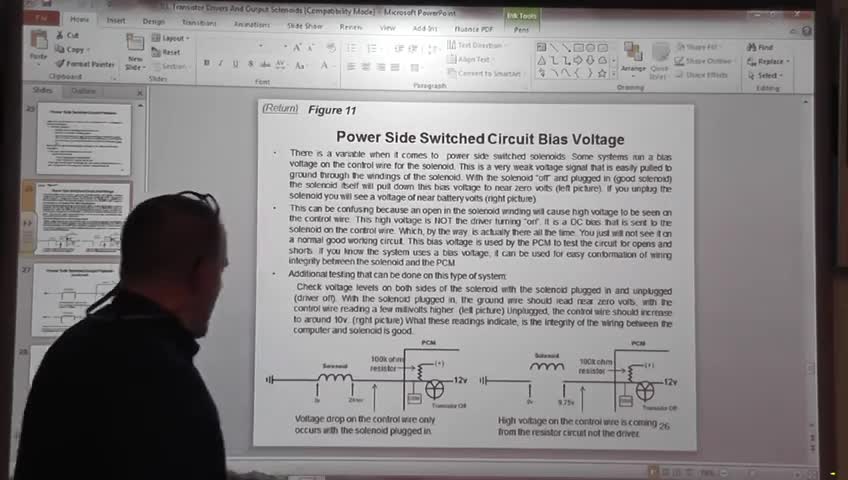

- bias voltage (what is it, how to use it, how it can cause misdiagnosis when using a voltmeter)
- wiring diagram review of a fuel pump relay circuit in my classroom (a ScannerDanner premium segment)
- how to measure fuel pump current
- what sets a fuel pump relay control trouble code
- ATD Tools 5519 Auto Ranging Digital Multimeter
https://www.jbtoolsales.com/atd-tools-5519-auto-ranging-digital-multimeter-with-protective-holster#oid=1014_1 - incandescent test light https://www.jbtoolsales.com/otc-3633-mini-circuit-tester#oid=1014_1
- backprobing pins AES' Electronics Accupuncture Probes http://www.aeswave.com/cart.php?m=affiliate_go&affiliateID=60df1b5cf6e5582af6ff81c728f42d0d&go=http://www.aeswave.com/AES-Electronics-Accupuncture-Probes-p9474.html
- (Chapters 14, 15,16) Fuel Delivery and Fuel Pressure Testing
- Fuel Pump Electrical Circuits Description and Operation
- Fuel Pump Relay Problem
- How to test and fix a PGM-FI main relay on a Honda, Acura
- How to test an electric fuel pump (1997 4.3L Chevy Blazer CPI)
- Fuel pump electrical circuit diagnosis (no fuel pressure testing) GM
