FEEL FREE TO COMMENTS, IT WILL BE TRY TO ANSWER ASAP.
Description:
Substrate integrated waveguide (SIW), also called post-wall waveguide or laminated waveguide, is a promising candidate for millimeter-wave and terahertz applications. This periodic waveguide is composed of two rows of conducting cylinders embedded in a dielectric substrate that connect two parallel metal plates. In this way, a synthetic rectangular metallic waveguide filled with dielectric material is constructed in planar form, thus allowing a complete integration with other planar transmission-line circuits such as microstrip and coplanar waveguide on the same substrate.

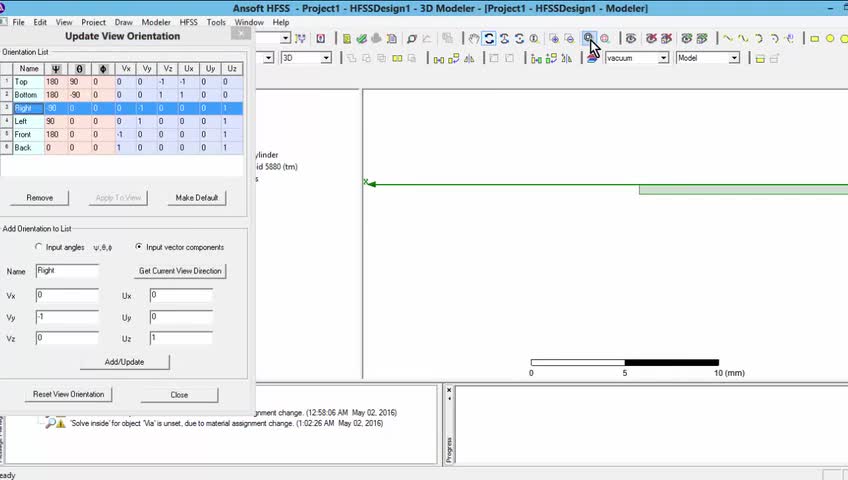

HFSS file:
https://drive.google.com/file/d/1p7FtbQsNbUYDTU_g_VxctYBUA8QU49pO/view?usp=sharing
Literature:
[1] Dominic Deslandes, Member, IEEE, and Ke Wu, Fellow, IEEE, Accurate Modeling, Wave Mechanisms, and Design
Considerations of a Substrate Integrated Waveguide, IEEE TRANSACTIONS ON MICROWAVE THEORY AND TECHNIQUES, VOL. 54, NO. 6, JUNE 2006
Photo Credit:
1.http://mwrf.com/active-components/fabricate-c-band-components-rectangular-siw
2.http://mwrf.com/passive-components/split-ring-resonators-add-siw-bandpass-filter
3. http://gam.webs.upv.es/index.php/lineas-de-investigacion/analisis-y-diseno-de-dispositivos-pasivos-de-microondas-en-tecnologias-planar-e-hibrida-guias-siw/?lang=en
