Substituted values (Scan Data Can Lie To You!) MAF sensor fault

توضیحات:

In this video I cover how to test a 3-wire GM MAF sensor and also show how a scan tool can lie to you. There are many names for this condition (limp home mode, fail safe mode etc) where the scan tool will show default or what I call substituted values. If one isn't careful with this condition, misdiagnosis of good components can occur.

Engine Performance Diagnostics chapter 11

Symptoms
- check engine light (Code 34)
- rough idle

Fix
- replace the MAF sensor

Tests shown
- checking scan data for related PIDs
- how to use a scope to check a digital MAF sensor

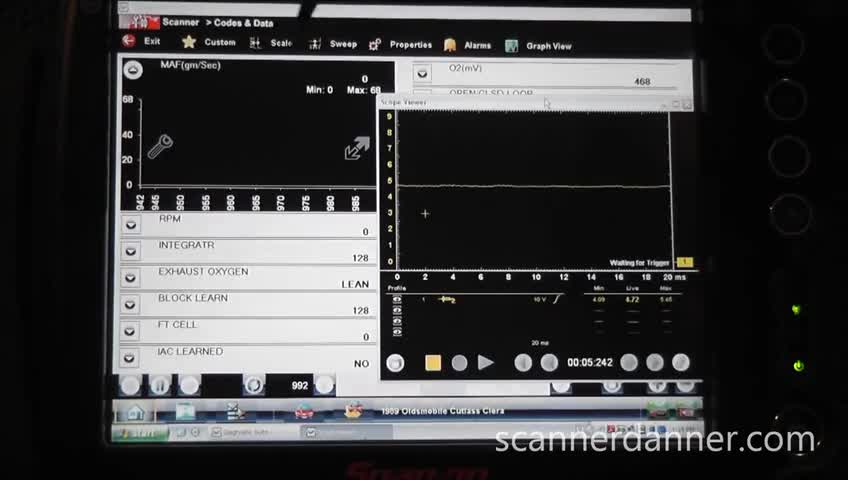

- how to view the scope and scanner simultaneously on the Snap-On Verus
- how to check a MAF sensor power and ground, identifying scope noise
